In this course you'll learn the how to get started with Allen-Bradley PLCs and RSLogix programming software. Note: New digital bonus and update lessons available online via DVD Owners Forum*
NOTE: This course covers a subset of topics included in “PLC Basics, Second Edition” and is offered as a low cost alternative to that more expansive course.
Click here for course details.
I'm happy to announce the re-released of my PLC Basics course in a new, super affordable “Core” edition.
This slimmed down “first edition” is being offered as low cost alternative to my completely refilmed and much expanded “PLC Basics, Second Edition” course.
Cut from the original 2014 course which earned a 4.6 out of 5 star rating with students in over 45 counties, this trimmer two hour edition has been simplified to include only the “core” topics you need to know to begin using and programming PLCs!
Note: Customers looking for my completely new, five hour second edition click here: PLC Basics, Second Edition.
What you will learn:

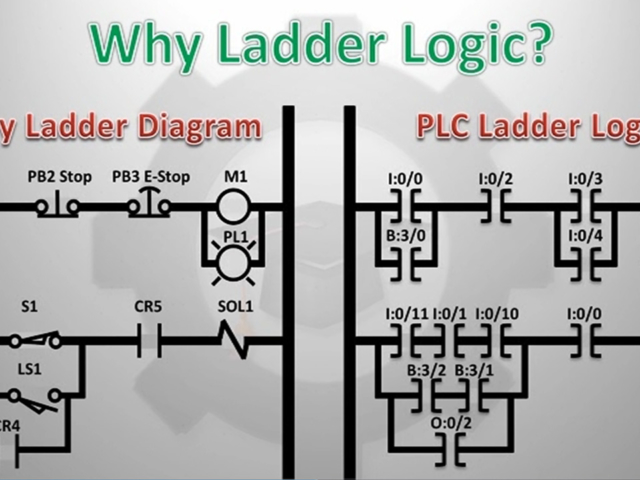

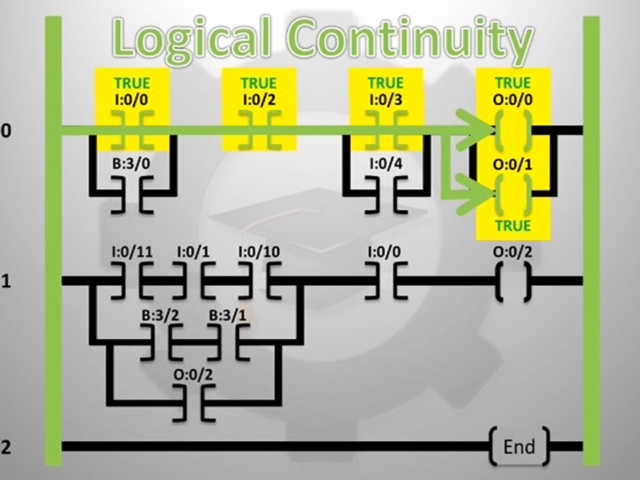

- Understand what a PLC is, and how to read Ladder Logic
- How to download, setup and use RSLogix, RSLinx, and RSEmulate
- *Updated Online Digital Lesson: New Downloads, Win10 Setup
- Understand Data Table files O, I, S, B, T, and C

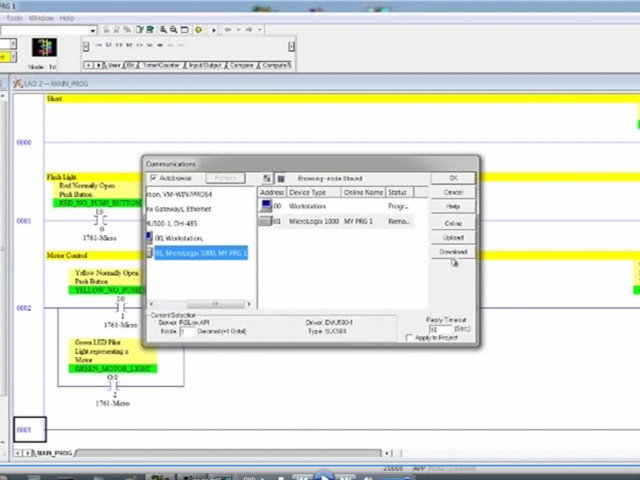

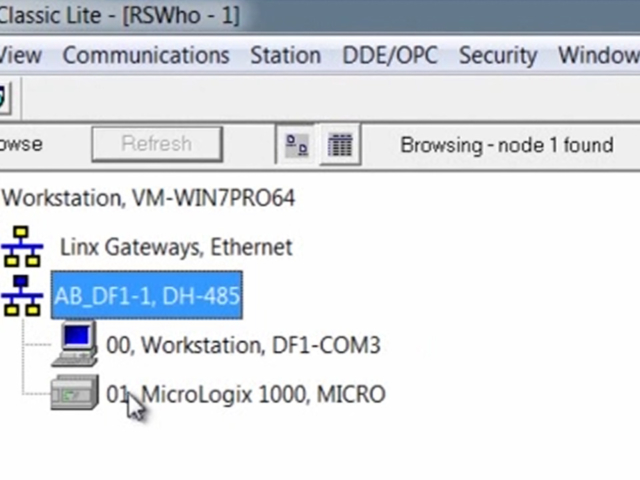

- Configure RSLinx communications to Emulated PLCs, as well as the Serial DF1 driver and cables used with A-B PLCs

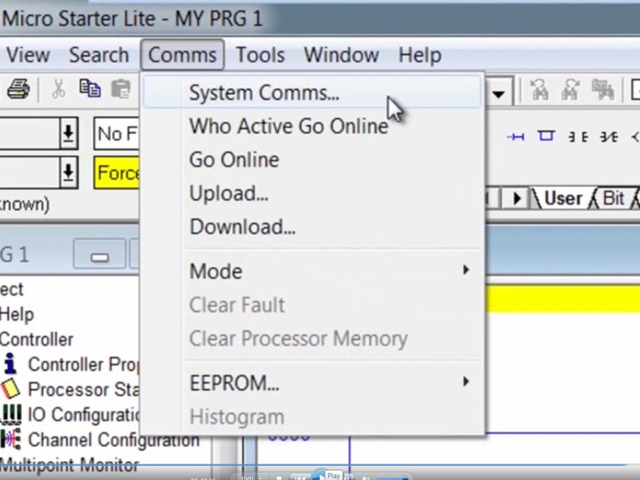

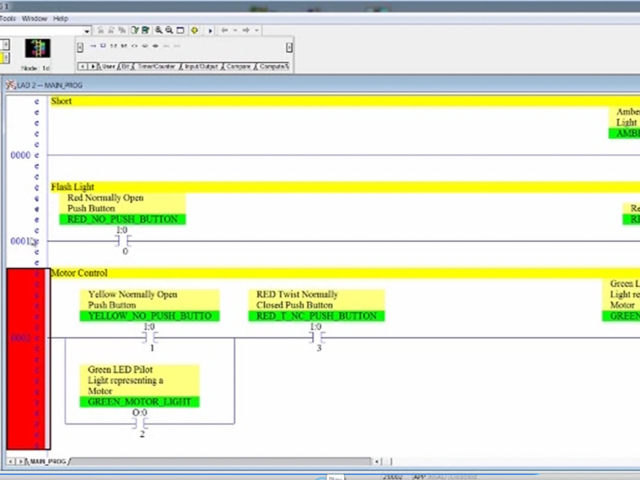

- Write, download, go online, test, and troubleshoot PLC Ladder Logic programs using Bit, Latch, Timer, and Counter instructions.
For additional details, visit the course page HERE
Who should take this course:
This introductory PLC course is designed for those people without prior PLC experience who want to get started using and programming PLCs quickly and inexpensively.
This course is also recommended as the starting point for beginners who would like to go on to learn about other A-B Programmable Controllers, including the Allen-Bradley CompactLogix and ControlLogix PACs.
Note: This course is not the newest, nor is it the longest version, however it is the least expensive. Students looking for the newest and longest version of the course should check out my new, completely re-recorded five hour edition, PLC Basics, Second Edition.
What is required to follow along and complete the exercises and hands-on labs:
- A Windows 7, 8, or 10 PC with Ethernet or USB port
- An internet connection to download the free programming software

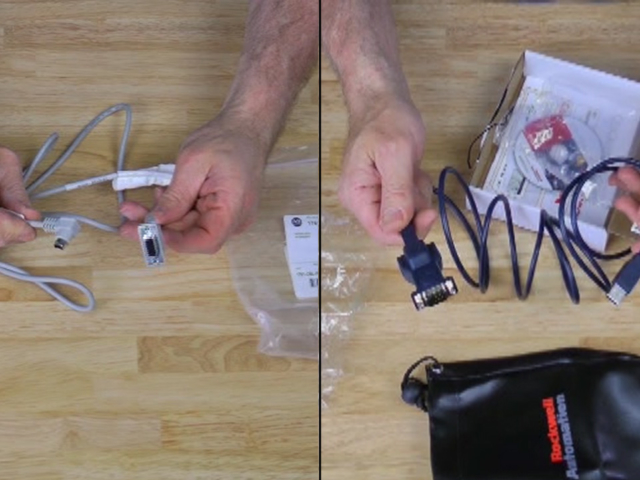

- A MicroLogix 1000 and a “USB to Mini-Din” programming cable, and a USB port on PC
- Or a MicroLogix 1100 and a standard Ethernet cable (Ethernet setup not covered in this course)
What is included with the DVD Course:
Physical DVD Set Shipping: When you purchase a “DVD Course” it includes free shipping to a valid address in the continental USA that the USPS (US Mail) can deliver to. Please insure you provide a valid US Mail address to avoid additional shipping charges for packages returned due to an incorrect addresses. Expected delivery of all DVD orders is two weeks from date of order, and all DVD customers are provided with a USPS tracking number.
I can honestly say that I have learned more with this course than I did with A-B's version. I feel so much more confident with communications between the computer, drivers, and the plc. And I understand better the functions and the processes that are taking place in the plc regarding XIC's, TO...Read More
I can honestly say that I have learned more with this course than I did with A-B's version. I feel so much more confident with communications between the computer, drivers, and the plc. And I understand better the functions and the processes that are taking place in the plc regarding XIC's, TON's, and Counters. This has really opened my eyes!Read Less
Shawn was very well prepared. The lessons were not only easy to follow but very instructional. Unlike other "video" courses Shawn walks you through the lessons. The theory and instruction comes WHILE actually writing a program. Can't say enough good about him and his course. Will definitely wi...Read More
Shawn was very well prepared. The lessons were not only easy to follow but very instructional. Unlike other "video" courses Shawn walks you through the lessons. The theory and instruction comes WHILE actually writing a program. Can't say enough good about him and his course. Will definitely will be recommending him and The Automation School to peers.Read Less
