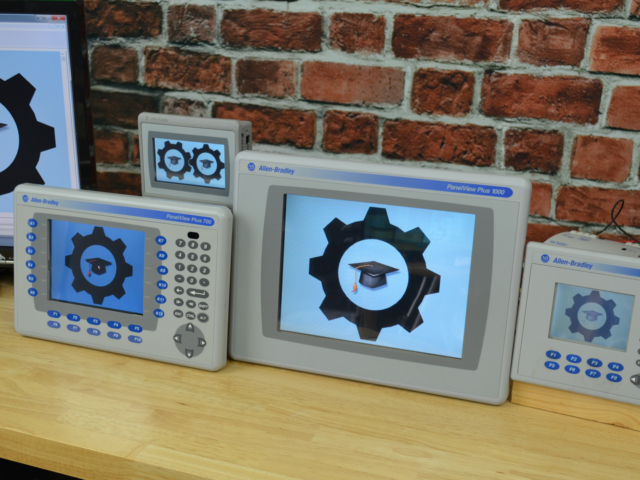

In PVP Basics you'll learn everything you need to know to setup, use, and program the Allen-Bradley line of PanelView Plus HMIs.
Click here for course details.
In this course you will learn how to setup, use, and program the PanelView Plus HMI. Note: New digital bonus and update lessons available online via DVD Owners Forum.
What you will learn:
- How to open, edit, and create applications
- How to correctly setup project settings, and what to consider before changing

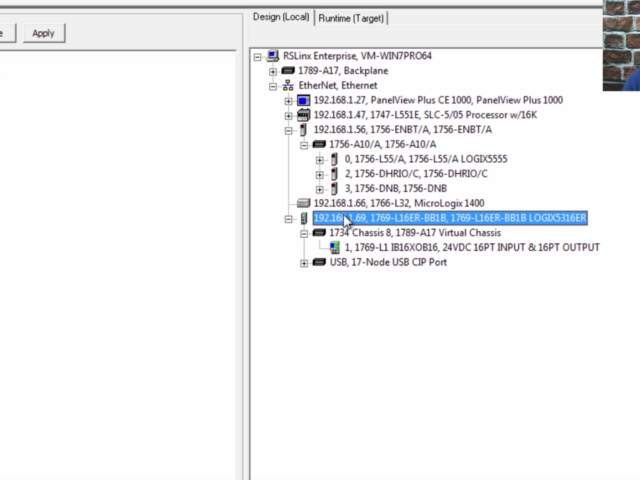

- How to setup RSLinx Enterprise Ethernet and Serial communications to ControlLogix, CompactLogix, SLC-500, and MicroLogix
- How to create, edit, and use all the different types of HMI Tags
- How to import Tags from RSLogix, and import / export the Tag DB to Excel

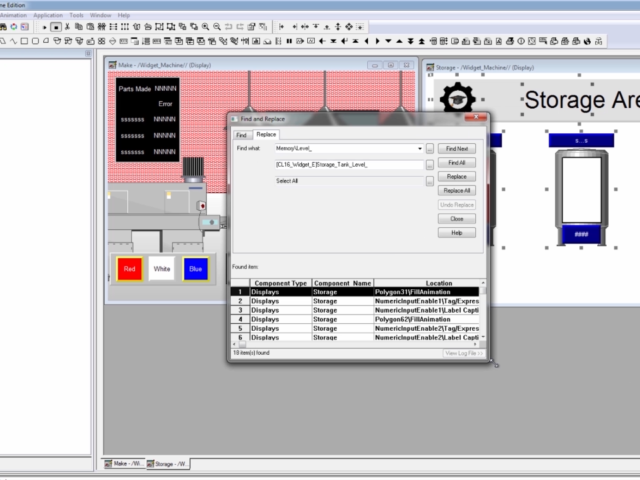

- How to create, edit, and test Graphics, Objects, Symbols, and Libraries
- How to directly reference PLC Tags both online and off
- How to test your Graphic Displays, and test your entire Application on your PC
- And much much more! (see lesson descriptions for more details!)
For additional details, visit the course page HERE
Who should take this course:
Anyone who has PLC experience and would like to learn how to setup, use, and program the A-B PanelView Plus family of Human Machine Interfaces (HMIs.)
What is required to follow along and complete hands-on exercises:
- Windows 7, 8, or 10 PC with a compatible Ethernet or Serial port.
- View Studio Machine Edition (lesson about how to get a free demo version is included)
- An A-B PLC or PAC compatible with Student’s PC for RSLinx communication lessons

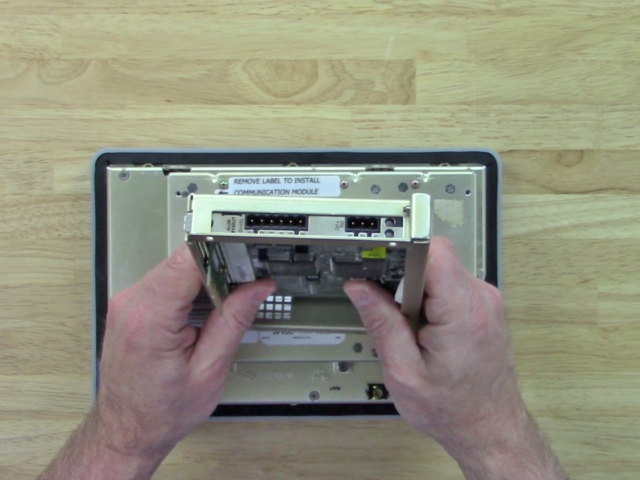

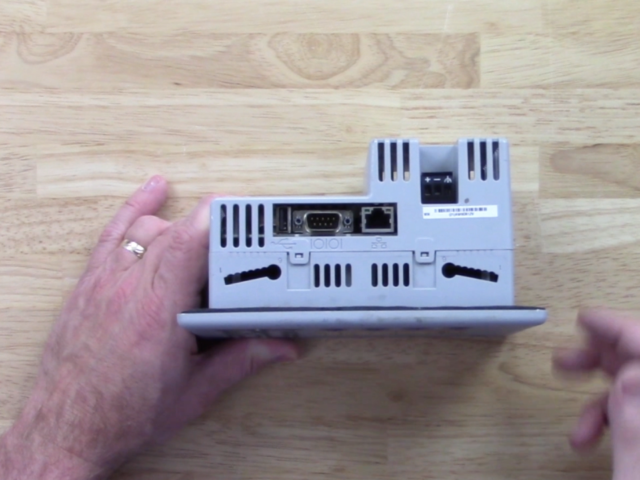

- An Allen-Bradley PanelView Plus for Configuration and Download lessons
What is included with the DVD Course:
Physical DVD Set Shipping: When you purchase a “DVD Course” it includes free shipping to a valid address in the continental USA that the USPS (US Mail) can deliver to. Please insure you provide a valid US Mail address to avoid additional shipping charges for packages returned due to an incorrect addresses. Expected delivery of all DVD orders is two weeks from date of order, and all DVD customers are provided with a USPS tracking number.
Very informative. I found out the answer to my question for my project that I was wondering about within the first 30% of the class material. Then I started programming my real world project and flipping back and forth between the class material and my real world project. Helped to re-integrat...Read More
Very informative. I found out the answer to my question for my project that I was wondering about within the first 30% of the class material. Then I started programming my real world project and flipping back and forth between the class material and my real world project. Helped to re-integrate the material covered.Read Less
