In the above video and below article you'll learn how to get the free 21 Day Trial license of TIA Portal from Siemens.

Note: The 21 Day Trial is 21 consective days and cannot be reset, so please do not open the TIA Portal until you are ready to begin using it.

Part 1: Registering with the Siemens' support website

Note: If you already have a login to the Siemens support website, skip to part two below.

Step 1) Visit the Siemens support website using the below link:

• https://support.industry.siemens.com/cs/start?lc=en-US

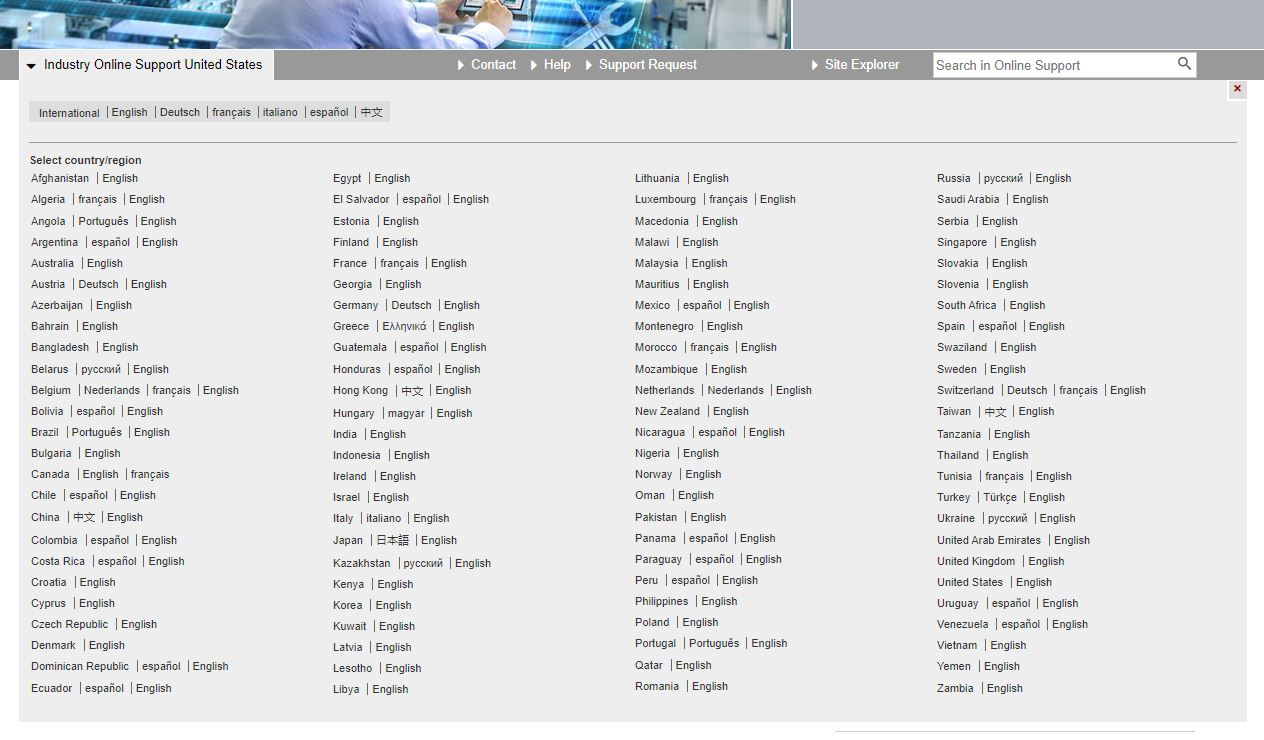

Note: If you're not from the USA, select your location using the provided drop down menu:

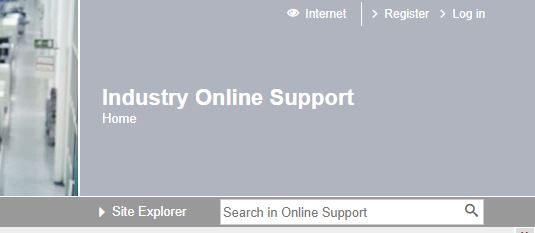

Step 2) Now click on the “Register” link on the top of the page:

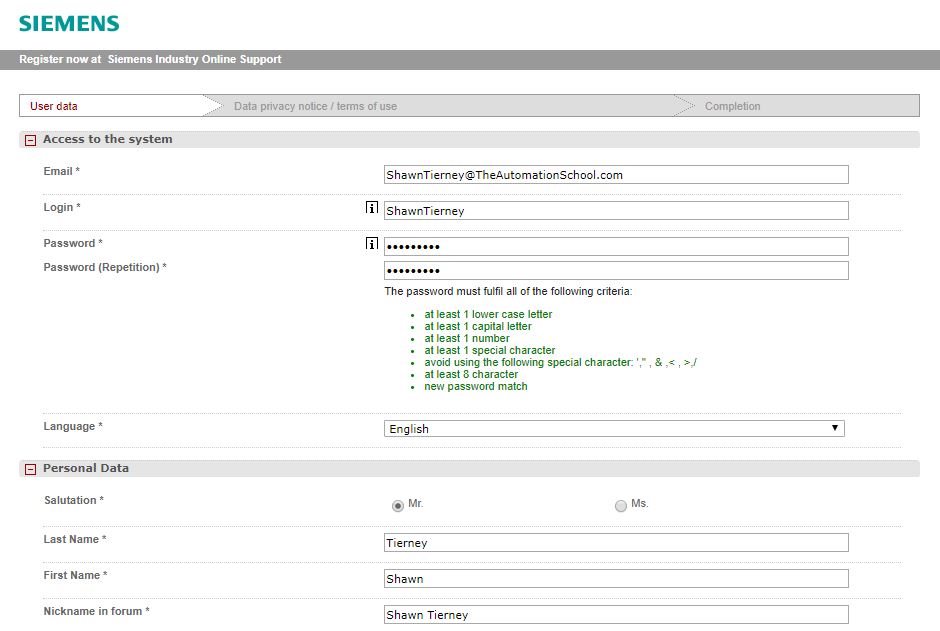

Step 3) Fill in your information, and be sure to use a valid email address:

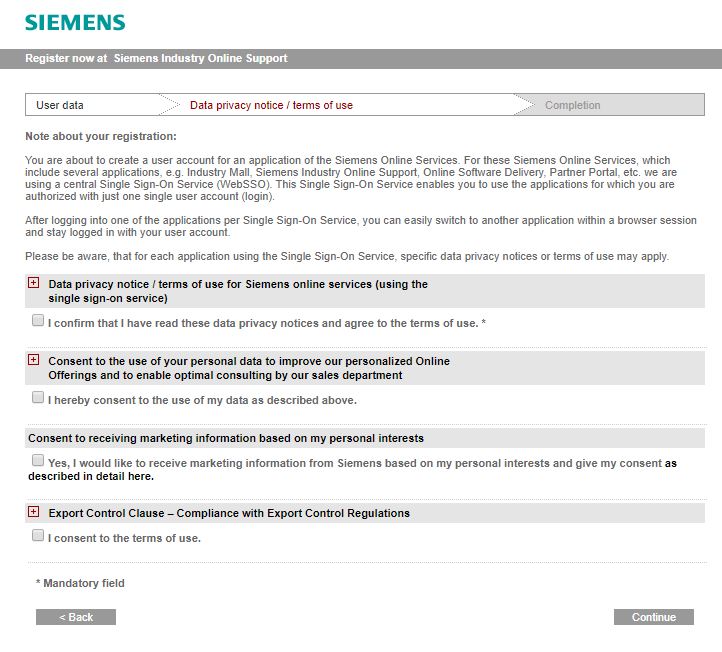

Step 4) Review each of the selections, then click on “Continue”:

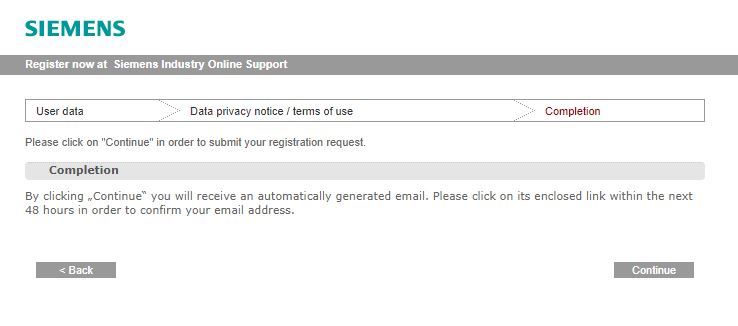

Step 5) And click on “Continue” one more time:

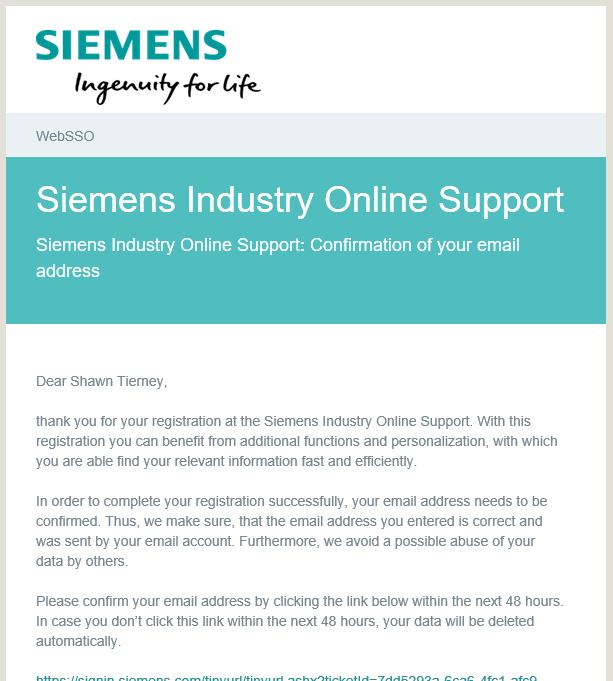

Step 6) Next, you'll need to click on the “confirmation link” in the email Siemens sends you within 48 hours.

Also make note to your Login (aka login name, user name) as listed in the email as it may not be your email address:

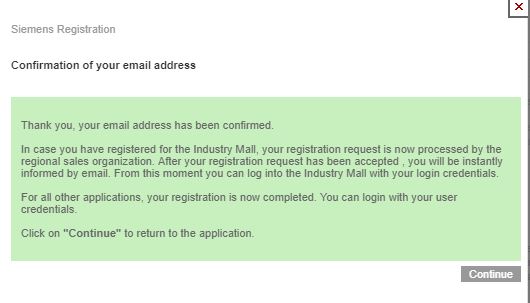

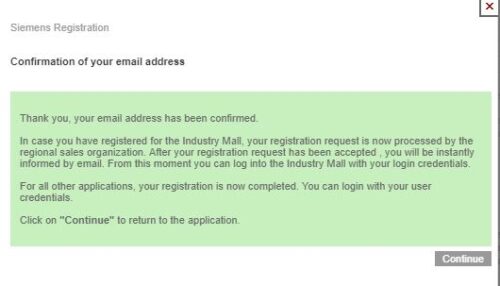

Step 7) After clicking on the email confirmation link, you should see a confirmation window like the one below:

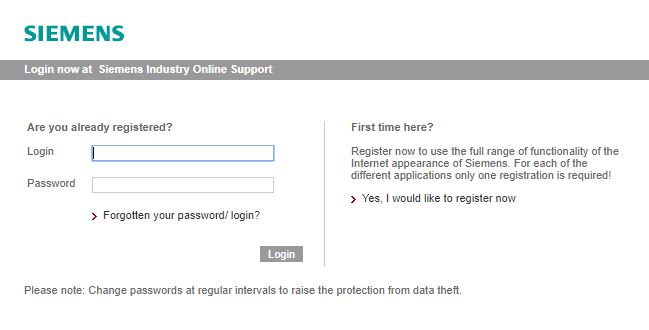

Step 8) Now return to the Siemens support website, click on Login, and use the Login name from the above mentioned email along with the password you chose during registration:

Part 2: Downloading the free TIA Portal Trial Software

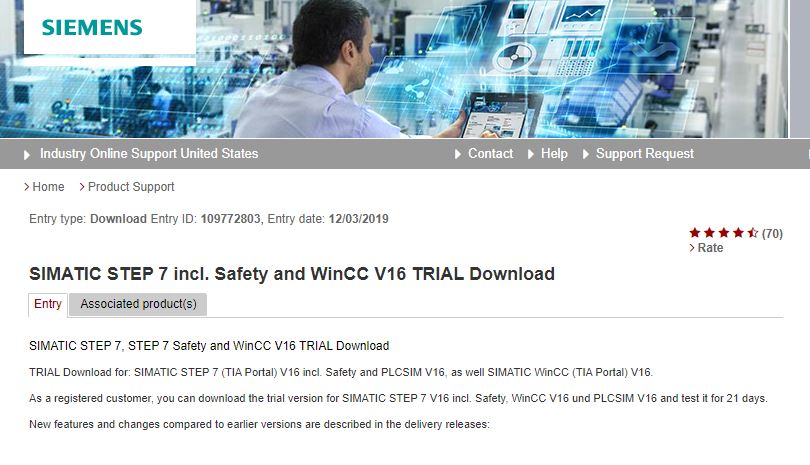

Step 1) Visit the TIA Portal download page using the link below:

• TIA Portal Trial link

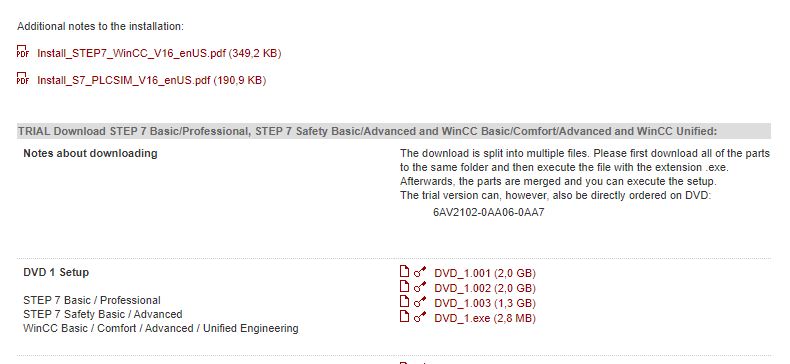

Step 2) Scroll down until you see “DVD 1 Setup,” and then click on each of the four DVD_1 files to download them:

Step 3) Once the four files have downloaded, move them all into a single directory and then double click on the “TIA_Portal_STEP7_Prof_ Safety_WINCC_Adv_Unified_V16.exe” to start the installation:

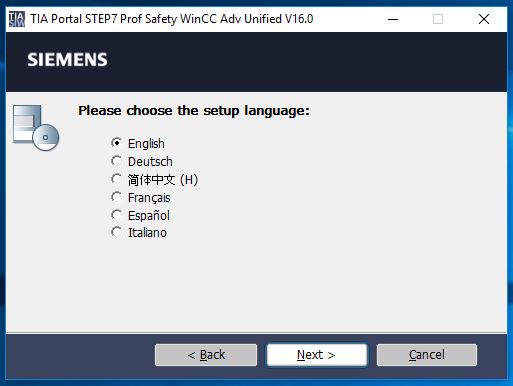

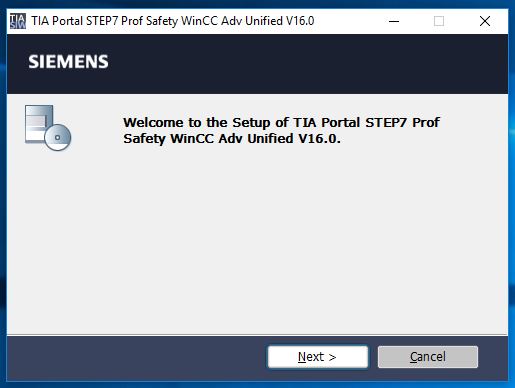

Step 4) Click on “Next,” select your language, and click on “Next” again:

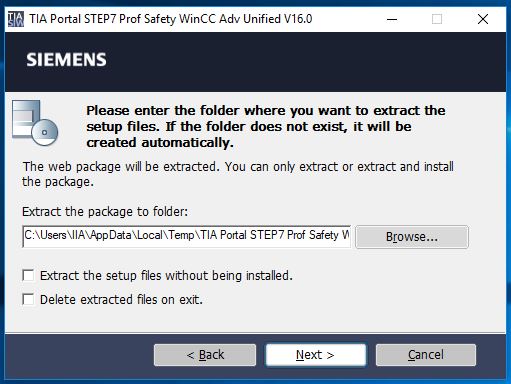

Step 5) Now select the extraction folder, and then select “Next”:

Note: Be sure to record the location of the “Extraction Folder” if you also choose “Extract the setup files without being installed.”

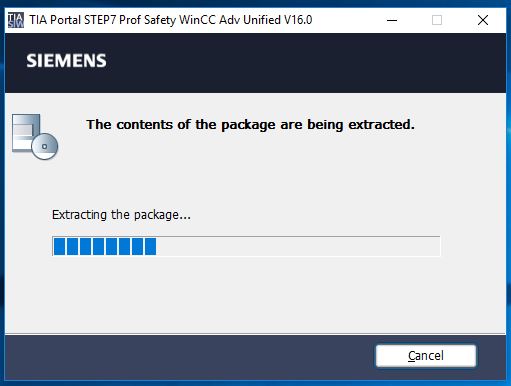

Step 6) At this point the downloaded software files will be extracted:

Part 3: Installing the free TIA Portal 21 Day Trial Software

Step 1) If you left the default setting in step 5 above, the TIA Portal installation should start automatically.

If not, you can launch the “Start” application located in the “Extraction Folder” you selected in Step 5 (the default location is C:\Users\username\AppData\Local\Temp also shown in Step 5 above)

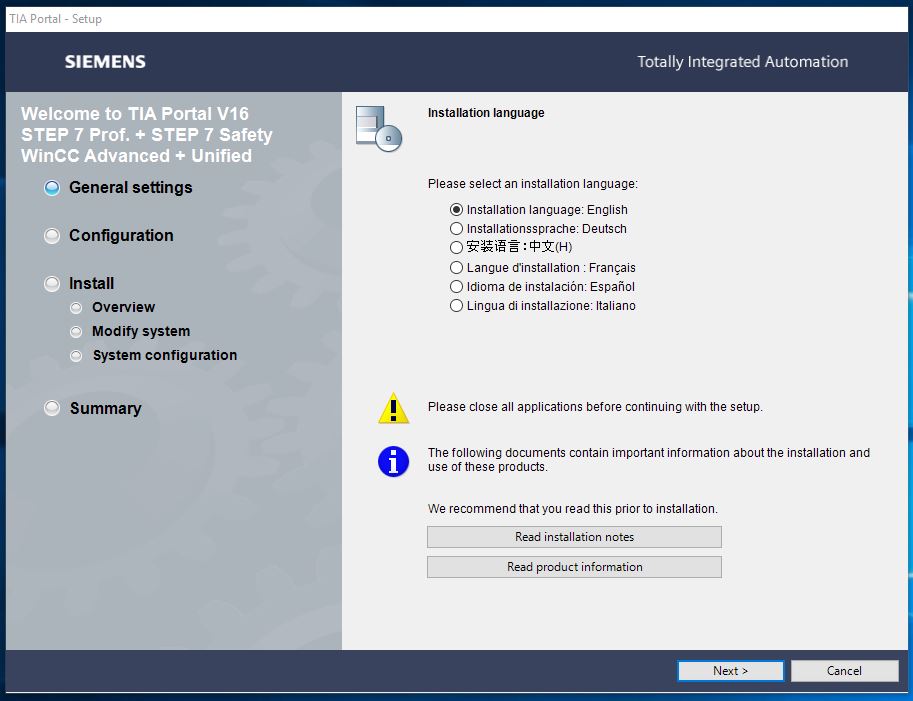

Step 2) Once the installer opens, choose your language and select “Next”:

Note: If you see this error about .NET 3.5, see our previous article HERE for the solution:

Step 3) On the next two screens select “Next”:

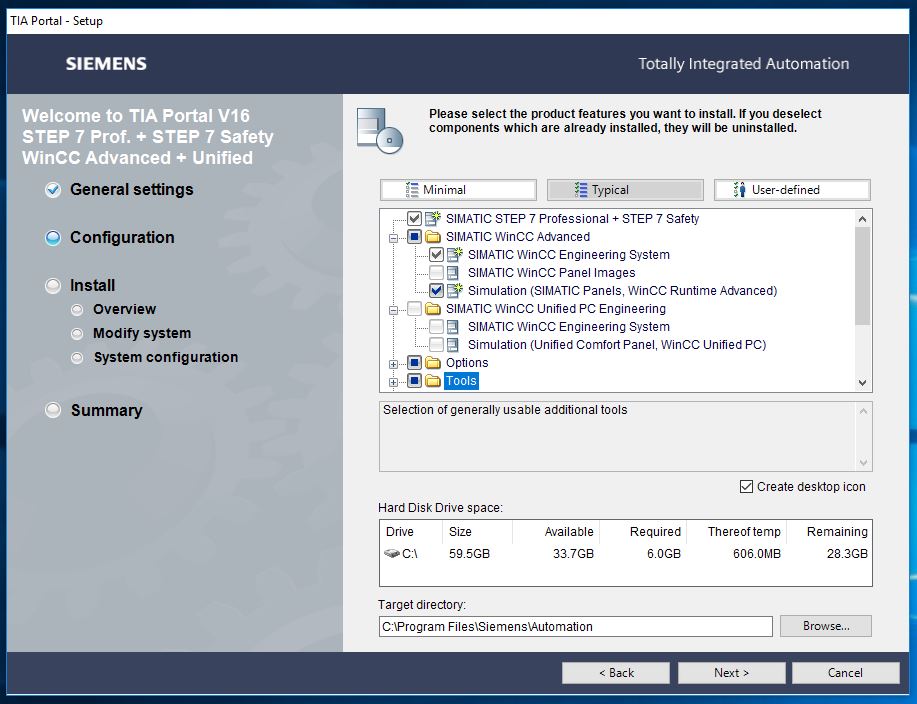

Step 4) On this screen I'd recommend keeping the “Typical” selection, and then click on “Next”:

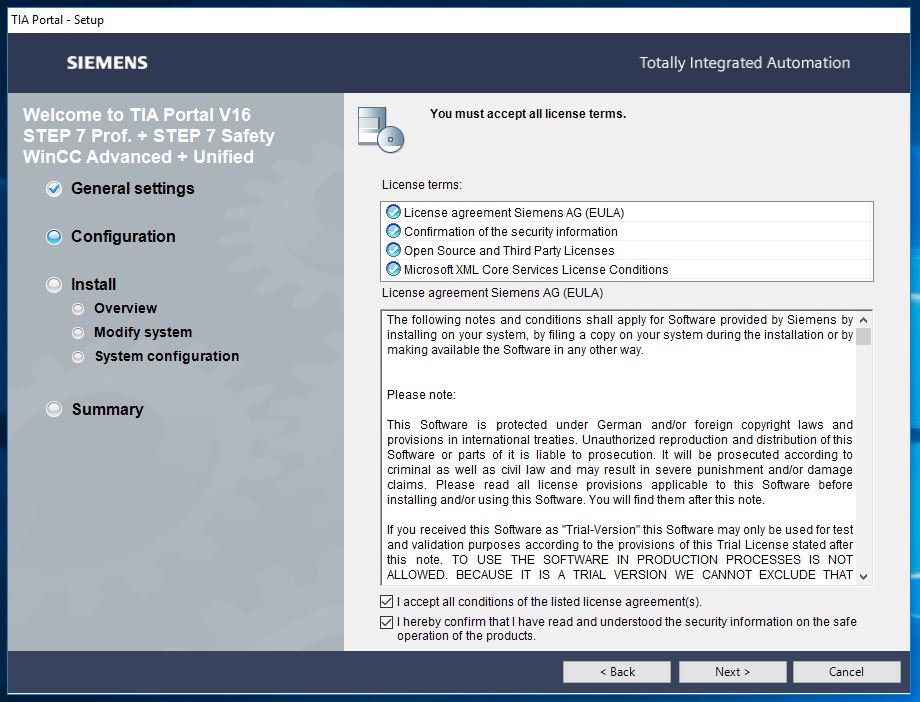

Step 5) Now check both boxes to accept the licenses, and then click on “Next”:

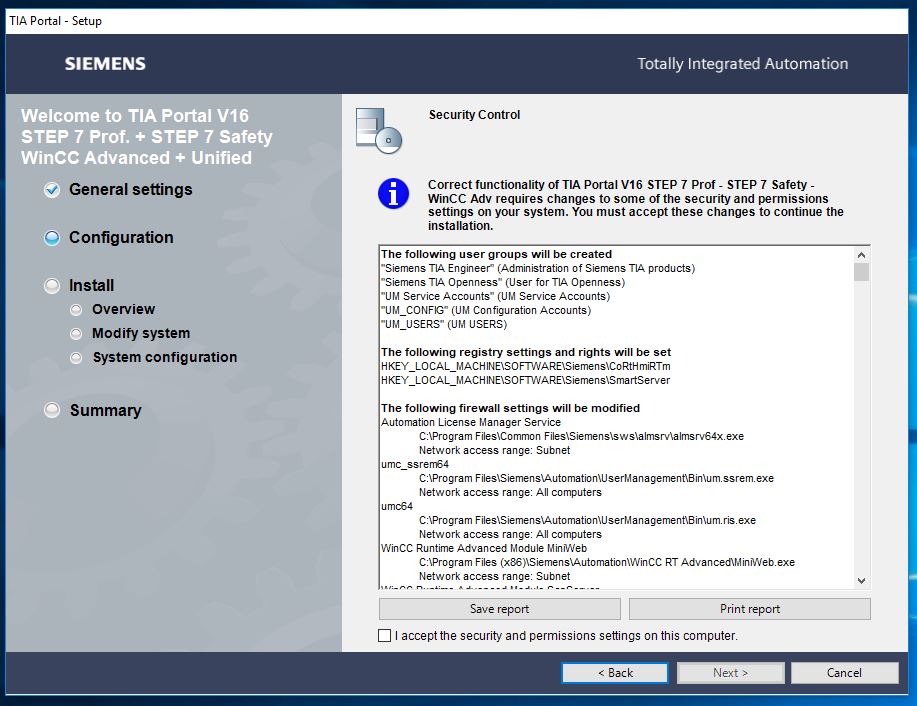

Step 6) Then check the “I accept” box, and click on “Next”:

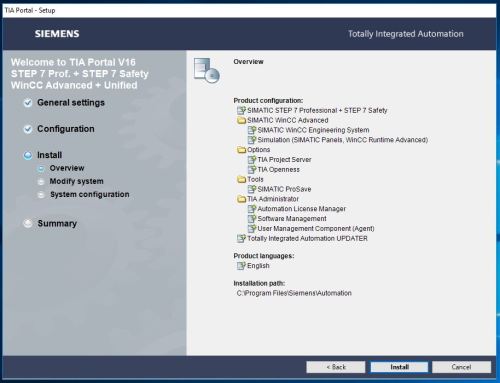

Step 7) Last but not least, click on “Install”:

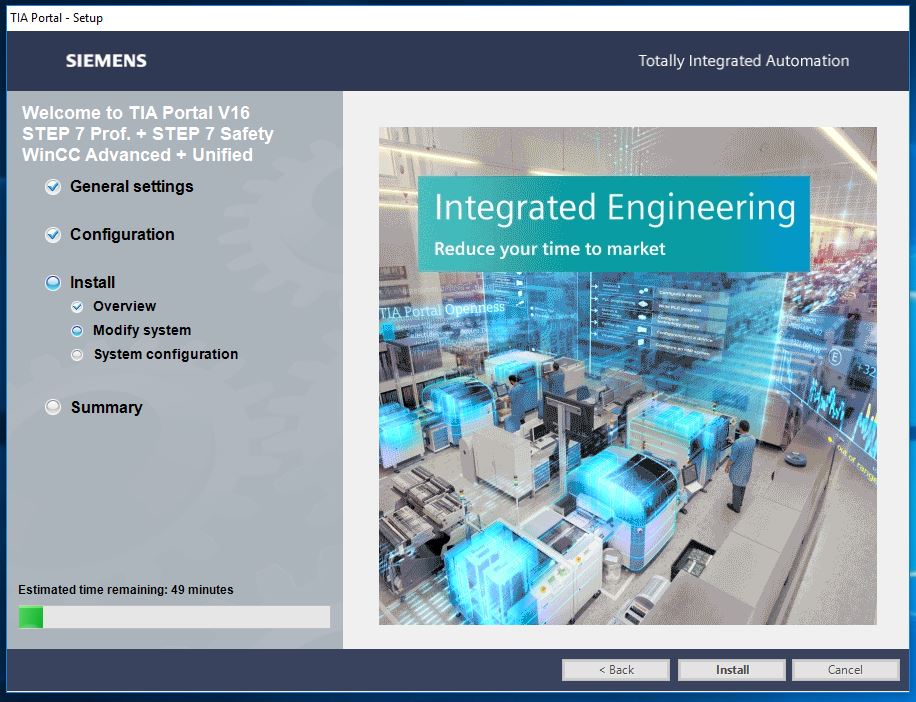

Step 8) Here we see the installation progress screen:

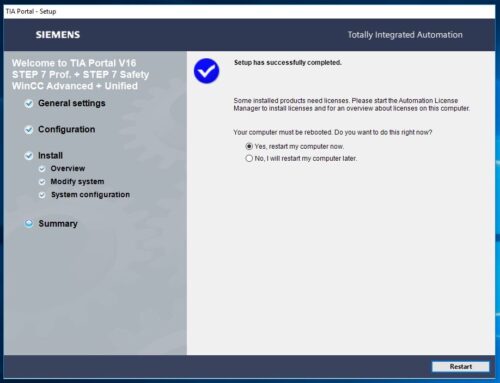

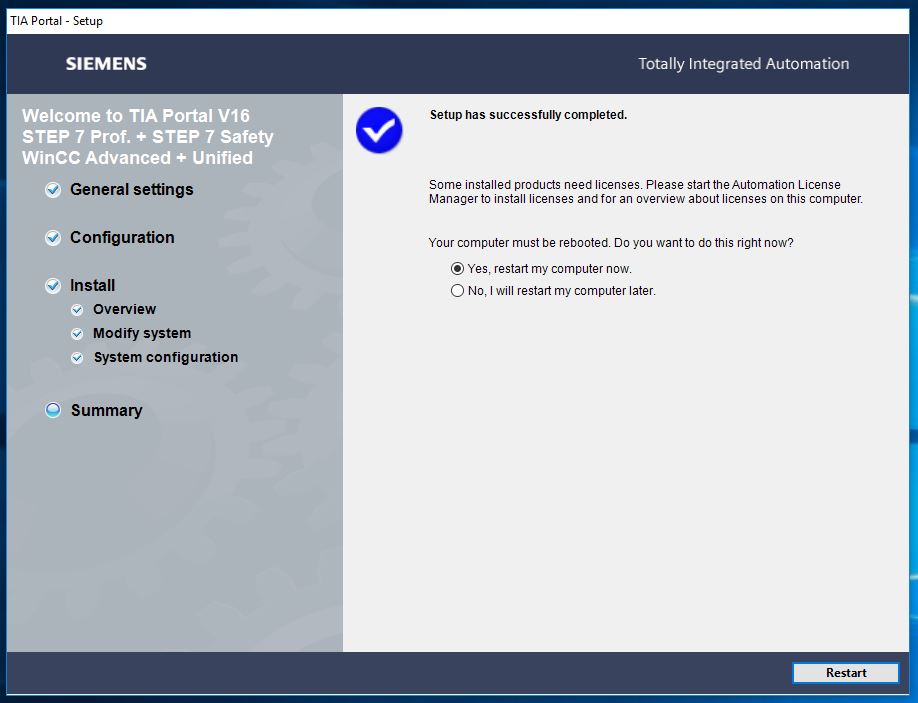

Step 9) Once installed the software may prompt you to reboot your system:

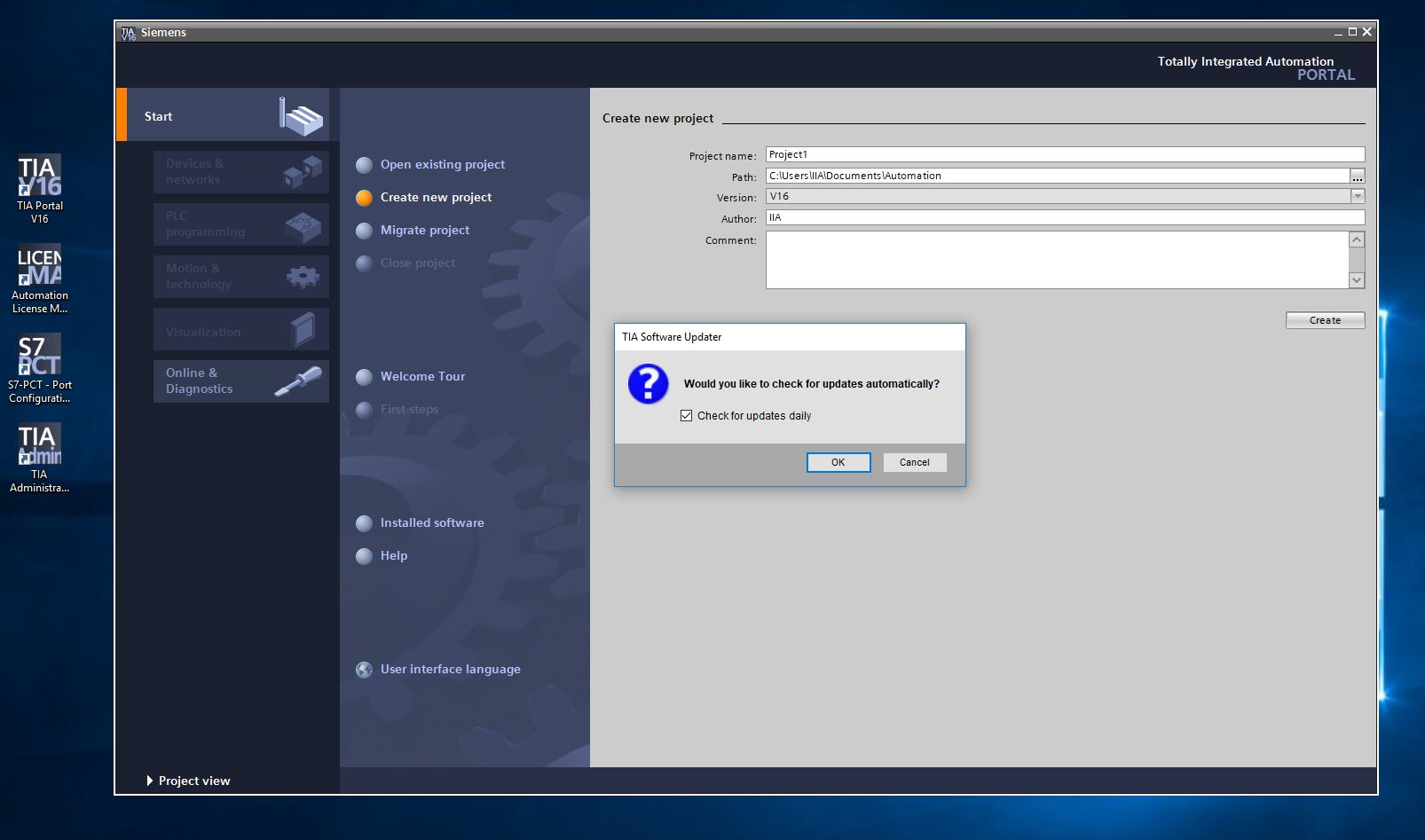

Step 10) Once rebooted, you're ready to start your twenty-one day trial of TIA Portal:
